AB3F Front Bump Stops | 1G/2G/3G Tundra | LC 100/200/250/300 | Sequoia 1G/2G/3G | Lexus GX 550
AB3F Front Bump Stops | 1G/2G/3G Tundra | LC 100/200/250/300 | Sequoia 1G/2G/3G | Lexus GX 550

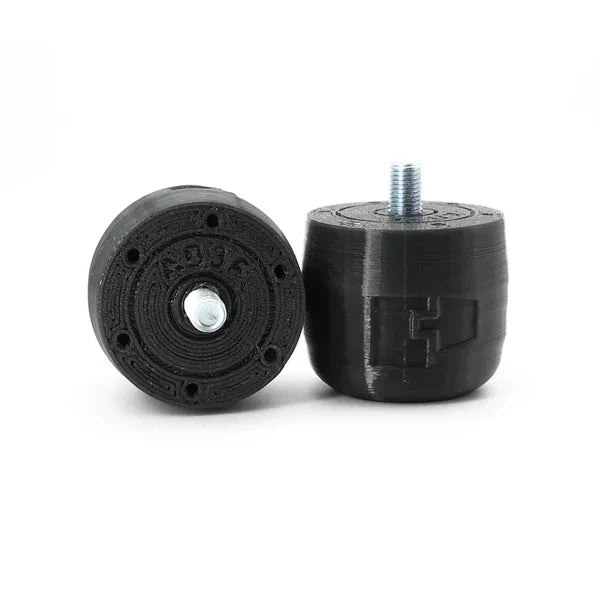

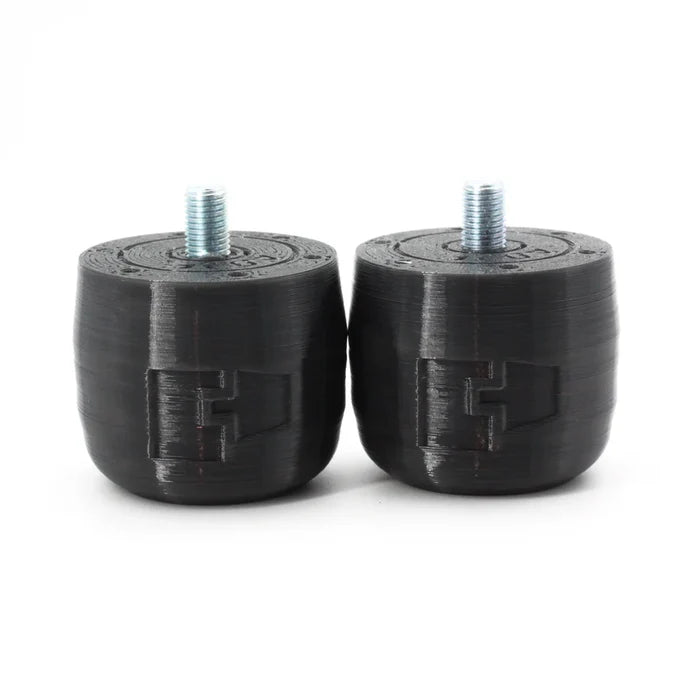

Sold as one pair, two bump stops
Compatible Vehicles
Toyota Truck
Tundra Gen 1, 2, 3
Land Cruiser Series 100, 200, 250, 300
Sequoia Gen 1, 2, 3
Lexus GX 550
Lexus LX 470, 570, 600
Product Height
AHC Equipped: 41 mm
OEM Up-Travel: 45.3 mm
-1/4" Up-Travel: 52 mm
Hardware Included

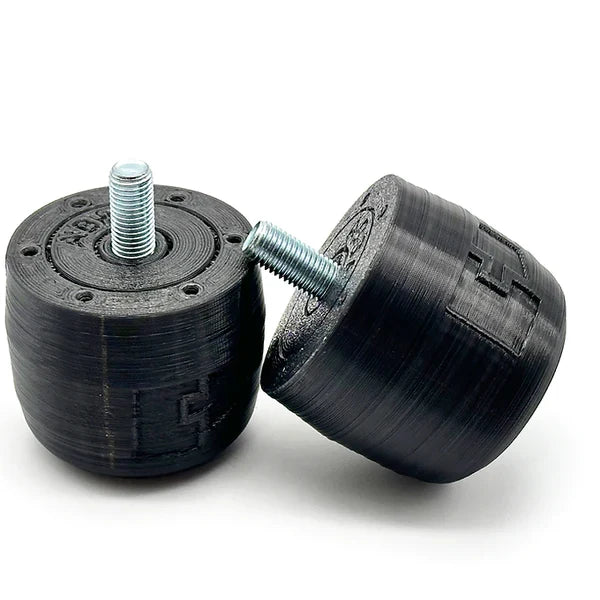

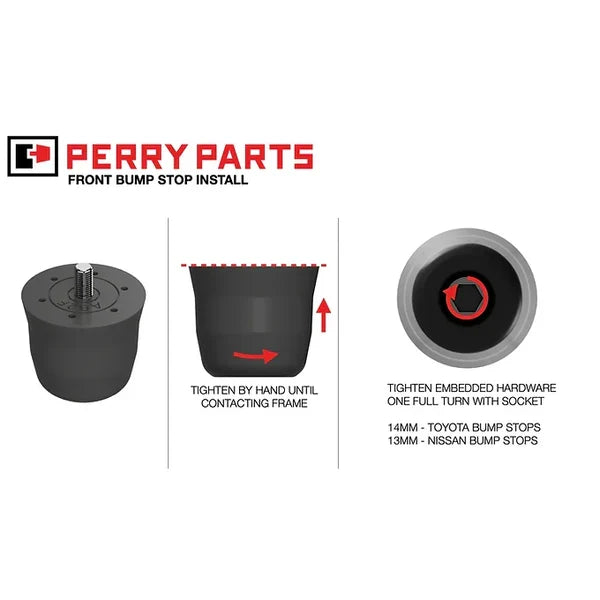

Center bolts are included as pictured for easy install

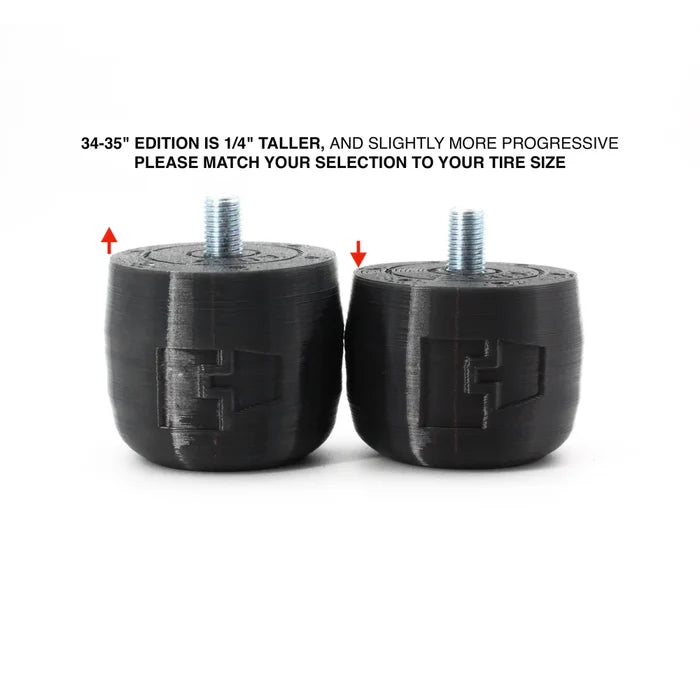

BUMP STOP SIZING GUIDE

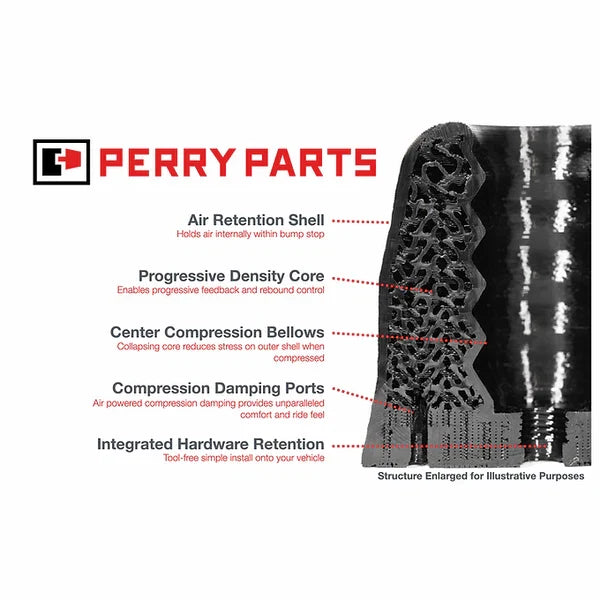

Low speed Dynamic response
On low speed compression, our bump stops allow full suspension travel, while preserving a hard stop to prevent overtravel. Air is forced through the internal ports, reducing the total response force, and enabling a softer ride.
High Speed Dynamic response
On high speed compression, our bump stops generate internal air pressure, increasing their force feedback by up to 37%. This provides maximum support when you need it.
Rebound rate is controlled, while air is pulled back into the part as it returns to shape. This reduces the workload on the shock absorbers to settle rebound speed.
